Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell

الاسم التجاري:	RESKY
رقم الطراز:	LP4025180
الـ MOQ:	100pcs
السعر:	قابل للتفاوض
تفاصيل التعبئة:	حزمة صينية نفطة مع صندوق ورقي
شروط الدفع:	T/T ، Western Union

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE, RoHS, MSDS, Un38.3,IEC62133,ect

نموذج لا.:

LP4025180

بطارية مربعة

المنحل بالكهرباء:

لي (نيكومن) O2

القدرة الاسمية:

2200mAh

100pcs

الحياة:

ضمان:

12 شهر

الموصل:

جي إس تي، موليكس....

مواصفة:

4*25*180 مللي متر

القدرة على العرض:

50000pcs/يوم

إبراز:

3.7v lithium polymer battery,2200mAh rechargeable battery cell,4025180 Li-ion battery with warranty

2200mAh rechargeable battery cell

4025180 Li-ion battery with warranty

وصف المنتج

Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell

High-performance lithium-ion polymer battery with ultra-thin design and reliable power delivery for compact electronic devices.

Specifications

NO.	Items	Specifications
1	Batteries	3.7v 2200mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	2200mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 180±2mm (not including tabs) Width: 25±0.5mm Thickness:4±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Key Advantages

Size and Form Factor Advantages

Ultra-thin design with dimensions of 4.0mm (thickness) × 25mm (width) × 180mm (length), ideal for compact spaces in modern electronic devices.

Ultra-thin profile: At just 4.0mm thickness, significantly slimmer than traditional cylindrical lithium batteries
Space-saving: Fits into thickness-sensitive devices like laptop keyboards, smart wearables, and ultra-thin tablets
Flexible placement: 180mm length allows installation in narrow, unused device areas

Electrochemical Performance

Optimized for compatibility with mainstream consumer electronics and reliable power delivery.

Standard voltage: 3.7V matches most consumer electronics requirements
Balanced capacity: 2200mAh (8.14Wh) provides 1-2 days typical use for many devices
Efficient charging: Supports 0.5C-1C charge rates with 300-500 cycle lifespan

Safety and Reliability

Engineered for safe operation in various environmental conditions.

Robust construction: Aluminum-plastic film encapsulation prevents leaks and explosions
Wide temperature range: Operates from -10°C to 60°C for indoor/outdoor use
Impact resistant: Passes drop tests without fire or leakage

Design Flexibility

Customizable solutions to meet specific device requirements.

Adjustable dimensions: Thickness and length can be fine-tuned for specific applications
Integrated protection: Optional protection board prevents overcharging and short circuits

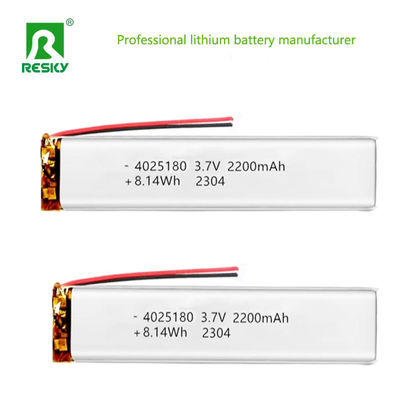

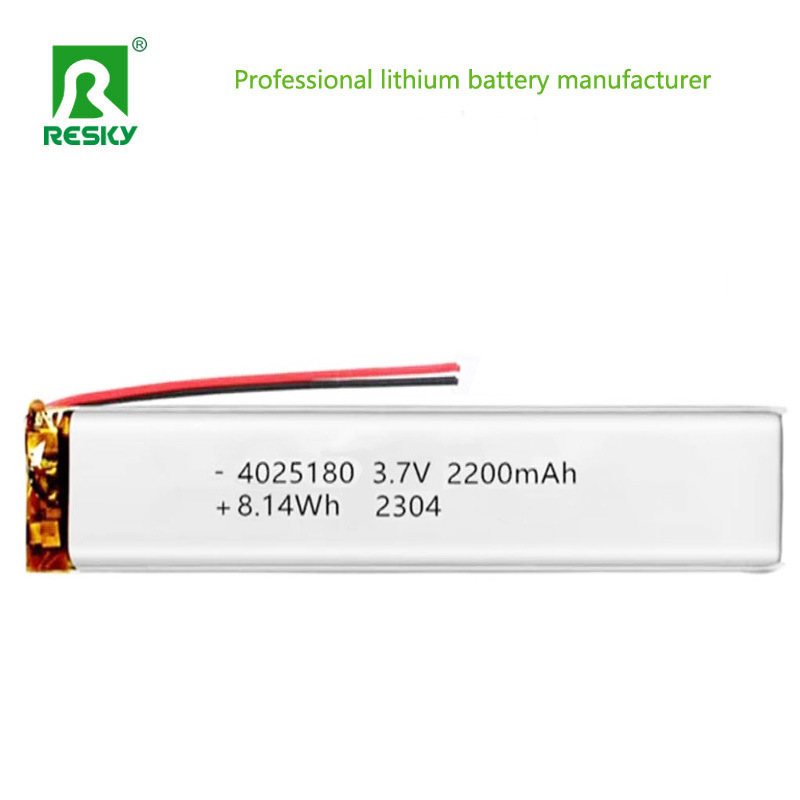

Product Images
