| الاسم التجاري: | RESKY |
| رقم الطراز: | LP901430 |
| الـ MOQ: | 100pcs |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | صندوق الورق |
| شروط الدفع: | T/T ، Western Union |
Lithium Polymer Battery Cell 3.7V 901430 360mAh 1.33wh Rechargeable Lithium Polymer Battery Pack
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 360mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 360mAh 0.2C Discharge |
| 5 | Charge current |
Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time |
Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V 0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 30±2mm (not including tabs) Width: 14±0.5mm Thickness:9±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Product features:
1. High energy density
The weight of lithium polymer batteries is half that of nickel cadmium or nickel hydrogen batteries of the same capacity, and the volume is 40-50% that of nickel cadmium and 20-30% that of nickel hydrogen.
2. High voltage
The operating voltage of a single lithium polymer battery is 3.7V (average), which is equivalent to three nickel cadmium or nickel hydrogen batteries connected in series.
3. Good safety performance
The outer packaging is aluminum-plastic packaging, which is different from the metal shell of liquid lithium batteries. Due to the use of flexible packaging technology, internal quality hazards can be immediately displayed through deformation of the outer packaging. Once a safety hazard occurs, it will not explode but only swell.
4. Long cycle life
Under normal conditions, the charge and discharge cycle of lithium polymer batteries can exceed 500 times.
5. No pollution
Lithium polymer batteries do not contain harmful metal substances such as cadmium, lead, mercury, etc.
6. No memory effect
The memory effect refers to the phenomenon in which the capacity of nickel cadmium batteries decreases during the charging and discharging cycles. Lithium polymer batteries do not exhibit this effect.
7. Fast charging
Using a constant current and constant voltage charger with a rated voltage of 4.2V can fully charge lithium polymer batteries within one to two hours.
8. Complete range of models
Complete range of models, wide capacity and size range, can be designed according to customer needs, with a single thickness of 0.8-10mm and a capacity of 40mAh~20Ah.
Application:
Consumer electronic devices:
Bluetooth earphones: The high capacity and fast charging characteristics make them an ideal choice for Bluetooth earphones, which can support long-term use.
Driving recorder: Stable performance in high temperature environments, ensuring real-time data updates.
Tire pressure monitoring system: It can provide stable power even under high temperature and sun exposure, ensuring data accuracy.
Other portable devices
Smart wearable devices, such as smart bracelets, watches, etc., require high-density battery support.
Mobile power bank: The 3.7V voltage platform is suitable for powering various devices.

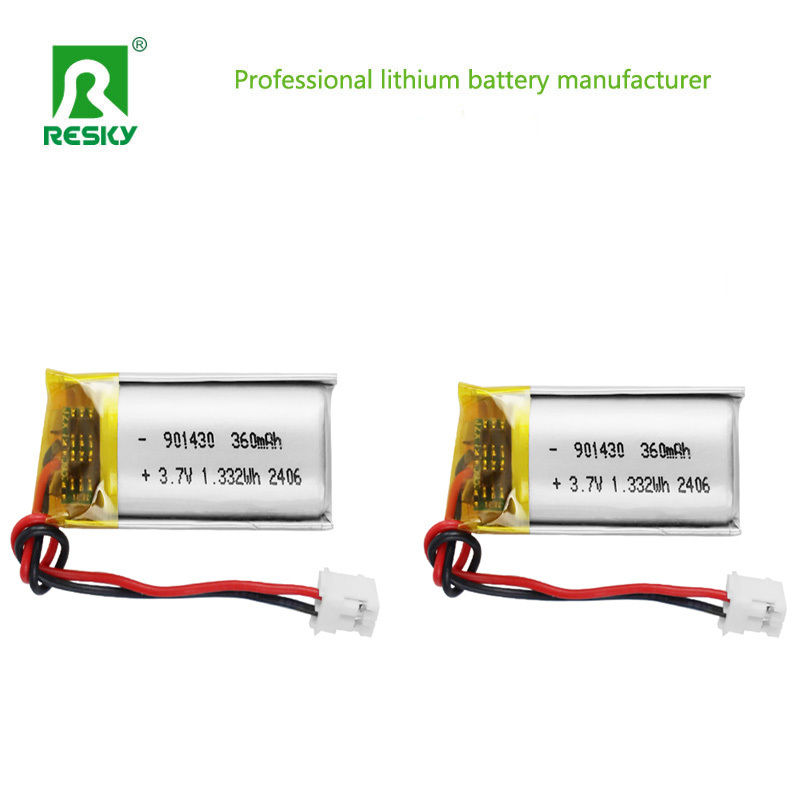

Product Picures:
|
| الاسم التجاري: | RESKY |
| رقم الطراز: | LP901430 |
| الـ MOQ: | 100pcs |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | صندوق الورق |
| شروط الدفع: | T/T ، Western Union |
Lithium Polymer Battery Cell 3.7V 901430 360mAh 1.33wh Rechargeable Lithium Polymer Battery Pack
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 360mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 360mAh 0.2C Discharge |
| 5 | Charge current |
Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time |
Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V 0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 30±2mm (not including tabs) Width: 14±0.5mm Thickness:9±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Product features:
1. High energy density
The weight of lithium polymer batteries is half that of nickel cadmium or nickel hydrogen batteries of the same capacity, and the volume is 40-50% that of nickel cadmium and 20-30% that of nickel hydrogen.
2. High voltage
The operating voltage of a single lithium polymer battery is 3.7V (average), which is equivalent to three nickel cadmium or nickel hydrogen batteries connected in series.
3. Good safety performance
The outer packaging is aluminum-plastic packaging, which is different from the metal shell of liquid lithium batteries. Due to the use of flexible packaging technology, internal quality hazards can be immediately displayed through deformation of the outer packaging. Once a safety hazard occurs, it will not explode but only swell.
4. Long cycle life
Under normal conditions, the charge and discharge cycle of lithium polymer batteries can exceed 500 times.
5. No pollution
Lithium polymer batteries do not contain harmful metal substances such as cadmium, lead, mercury, etc.
6. No memory effect
The memory effect refers to the phenomenon in which the capacity of nickel cadmium batteries decreases during the charging and discharging cycles. Lithium polymer batteries do not exhibit this effect.
7. Fast charging
Using a constant current and constant voltage charger with a rated voltage of 4.2V can fully charge lithium polymer batteries within one to two hours.
8. Complete range of models
Complete range of models, wide capacity and size range, can be designed according to customer needs, with a single thickness of 0.8-10mm and a capacity of 40mAh~20Ah.
Application:
Consumer electronic devices:
Bluetooth earphones: The high capacity and fast charging characteristics make them an ideal choice for Bluetooth earphones, which can support long-term use.
Driving recorder: Stable performance in high temperature environments, ensuring real-time data updates.
Tire pressure monitoring system: It can provide stable power even under high temperature and sun exposure, ensuring data accuracy.
Other portable devices
Smart wearable devices, such as smart bracelets, watches, etc., require high-density battery support.
Mobile power bank: The 3.7V voltage platform is suitable for powering various devices.

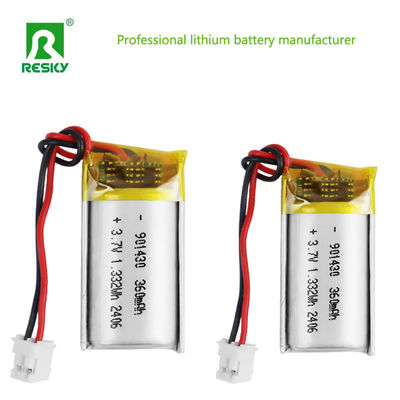

Product Picures:
